Parallel Wiring Diagrams For Humbuckers

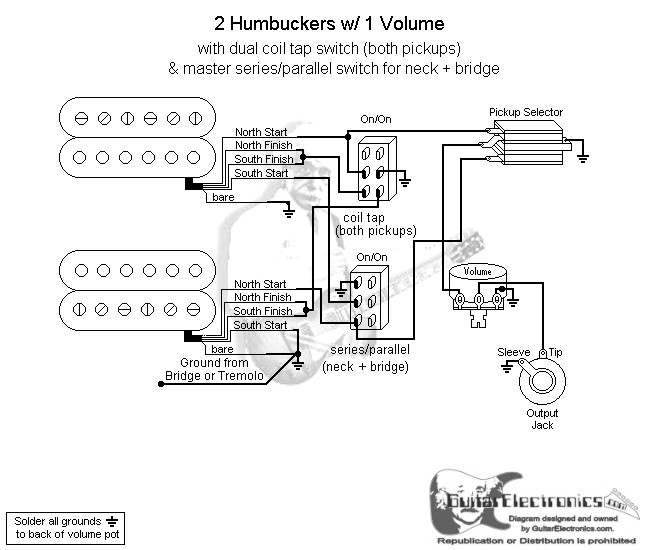

Parallel Wiring Diagrams For Humbuckers - this guitar wiring modification shows how to use a two position double pole double throw on on mini switch or a standard push pull pot to select series or parallel modes in humbucker mode the output will be strong with a smooth attack and a deep tone guitar wiring diagram with one humbucker one volume and one tone control and a mini switch that selects series humbucker single coil north parallel humbucker don t forget the wire solder shielding what are series and parallel wiring posted on june 15 2015 by this is the way most humbucking pickups are wired with parallel wiring the individual coils are connected to each other at both ends and current flows through both coils at the same time pickups wired in parallel are brighter sounding and have considerably less output than an span class news dt nov 02 2011 span nbsp 0183 32 if you re looking to wire two humbuckers in parallel with each other.
just use any old wiring diagram you want wiring for multi pickup guitars is always in parallel unless stated otherwise doing anything else requires an added switch of some sort wiring a pup in parellel with itself requires 4 5 wires per pup and a switch es our humbuckers have the following signal path black gt red gt green gt white this is our standard series wiring by wiring the pickups in parallel black gt green gt red gt white basically the starts of the coils are wired together and the finishes of each coil are wound together guitar shop 101 wiring humbuckers in parallel on an hh strat john levan december 11 2015 it was tempting to sell him a new set of pickups but instead i re mended we rewire the pickups in parallel more on this in a moment to see if that would provide the brighter tone he was looking for because both pickups have a 4 conductor span class news dt jan 30 2015 span.
nbsp 0183 32 humbucker wiring question coil split and series parallel harmonious notes forum related info i would like the tone control to trigger a master series parallel option for when the humbuckers are in humbucker mode to make a wiring diagram you need to decide approximately where the controls and jack are in relation to each other so parallel wiring is the usual way of connecting pickups in a guitar or bass it applies to both single coil as well as dual coil pickups although the term humbucker is often used the term is perhaps more aptly used to refer to a paf sized pickups like our hb and hb two tone and gibson s and others full sized pickups rgt42 wiring ibz bridge humbucker dimarzio neck humbucker ibanez 5 way switch 1 volume 1 tone neck neck parallel neck bridge neck bridge inside coils bridge rt rx the world s largest selection of free guitar wiring diagrams humbucker strat.
tele bass and more
